Operating Principle

STEP 1:

Primary filtration

Pollen, fluff, flying insects,

Large suspended particles are filtered

STEP 2:

Plasma charged electric field

Air moves dust particles in the plasma

Recharge while completing bacterial and viral inactivation

STEP 3:

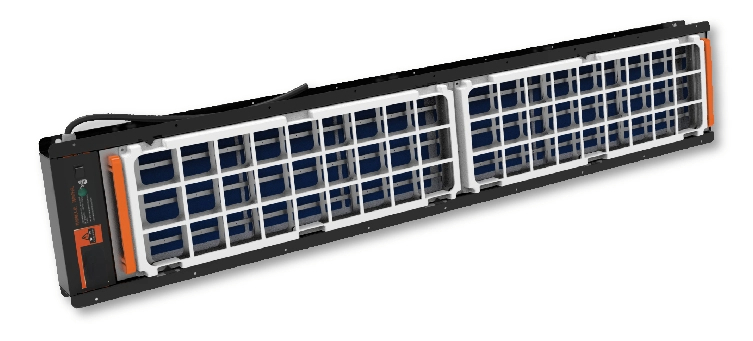

Ultra electrostatic dust collection module

The pre-charged moving dust particles are adsorbed almost 100% under the action of a very strong electric field force in the dust collection area of the plate polymer

Technological advantage

 A. Large dust capacity

1. Material innovation--Improves insulation performance

    Multilayered, extruded copolymer grooves are charged using a type superconductor materials.

   2.Dual power supply to prevent cleaning failure

   There are unilateral alternating positive and negative power supply, change to bilateral positive and negative power supply.

   3.The dislocation support expands the dust space

   The dislocation support structure greatly improves the dust capacity of the product.

Experiments show that a medical purifier with an air volume of about 300m³/h, using ifDP plasma ultra electrostatic module, after adsorption of 5875 cigarettes, its CADR value is almost not reduced, which is equivalent to continuous use in the most serious haze environment for 5 years, only clean the initial effect filter, ultra electrostatic module does not even need to do any cleaning!

B.Ultra-long life

1. The ultra-static groundbreaking conductor edge adds a part of the isolation zone (gap), effectively reducing the generation of corona, the structure ensures that the electrode will not be due to adsorption of pollutants caused by leakage.




  2.Superstatic electricity provides maximum electrical isolation in small Spaces

     Greatly improve the electrode insulation performance, resist arc ignition and abnormal discharge

 3.Long maintenance cycle: The increase of dust capacity reduces the number of cleaning, reducing the knock damage and man-made damage of the equipment during the disassembly process. Improve filter efficiency and extend service life. Reduce the number of air conditioning system cleaning and maintenance, can save a lot of maintenance costs.

C. Super adaptability

  Can adapt to a variety of complex conditions: high humidity, high salt, high temperature, high concentration of pollutants environment

IfDP Ultra Static modules maintain high efficiency in high humidity environments!

It is not easy to reduce the purification efficiency due to short circuit, which solves the problem of purification efficiency failure and attenuation in complex environment.

Product Characteristics

1.Washable

Filter can be washed repeatedly, no need to replace, zero consumables

2.Efficient

The purification efficiency of PM2.5 is as high as 99%; Microbial one-time filtration efficiency of more than 98%

3.Low resistance

Under the wind speed of 1.5m/s, the resistance is less than 10Pa, and the long-term operation resistance does not increase significantly

4.Secure

Near zero ozone emission, no discharge noise

5.Low-carbon

Ultra-thin design for easy installation and maintenance, low resistance resulting in low energy consumption

6.Economy

The long maintenance cycle significantly reduces operating and maintenance costs

It is now cleaned and maintained every three years!!!

Inspection report

• PM2.5 purification efficiency/Microbial purification efficiency (%)

• Influenza A virus kill rate (%)
